23ZERO Armadillo® A3L Roof Top Tent (DEMO/FLOOR MODEL)
FINAL SALE/NO WARRANTY ON SCRATCH, DENT, & USED ITEMS
PICK-UP ONLY @ EDMONTON, ALBERTA STOREFRONT
Small LST peeling, barely noticeable! Save big on this floor model!
Introducing the new 23ZERO Armadillo® A!
Armadillo A3: 72" x 86"

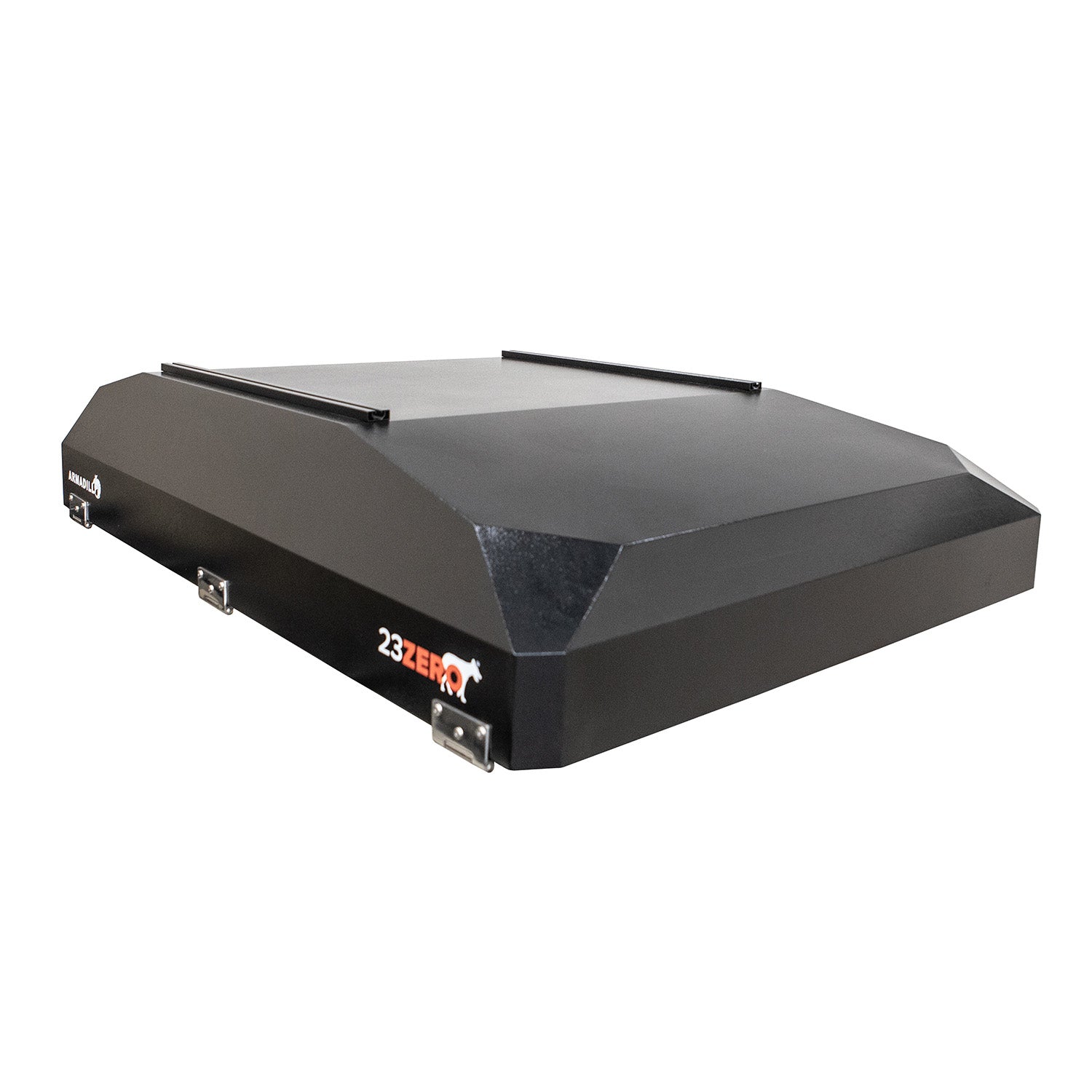

Rugged 14 GA Fully Welded Aluminum Hard-Shell
Uniquely styled and aerodynamic with semi-textured high-gloss black finish is trail-hardened and ready to deflect low-hanging branches or high-speed roadways in all conditions "“ rain or shine!
23ZERO's One-of-Kind Light Suppression Technology® (LST®) Fabric
A leading-edge combination of a UV treatment, and an advanced Polyurethane coating that stays up to 15% cooler and ensures darkness (almost zero light penetration) until you open the windows to start your day. Sleep better than ever before in a roof-top tent. Control the light "“ control your comfort!
2"� Rebound Foam Quilted Mattress
Wrapped in a breathable quilted poly topper in olive. The newly engineered mattress has a higher latex content to resume its original shape much faster than traditional high-density foam roof-top tent mattresses. It feels firmer even though on paper it has the same specs as its predecessor.
Left Side-Open Deployment
Allows an optimized placement on your choice of Overland Rigs ranging from smaller crossovers and wagons to bed mounted mid-sized 4×4's, to monster custom builds. In light of all international vehicle options.
Armadillo A2 |
Armadillo A3 |
|
Open Direction Options |
Right & Left | Right & Left |
Opening/Closing Method |
"¢ 2x internal heavy duty gas struts "¢ 3x heavy duty 100mm stainless steel hinges opening to nearly 90° "¢ built-in 4-point elastic shock cord bands for tent pack-up assistance "¢ mid-body closing-side handle "¢ 11" x 1 1/2" (22" in total) nylon lid pull strap |
"¢ 2x internal heavy duty gas struts "¢ 3x heavy duty 100mm stainless steel hinges opening to nearly 90° "¢ built-in 4-point elastic shock cord bands for tent pack-up assistance "¢ mid-body closing-side handle "¢ 11" x 1 1/2" (22" in total) nylon lid pull strap |
Latch |
"¢ 2x adjustable heavy duty over-center safety 4001-toggle latches with lock-ready hole "¢ 2 x 1' nylon hook & loop webbing and rectangle d-ring |
"¢ 2x adjustable heavy duty over-center safety 4001-toggle latches with lock-ready hole "¢ 2 x 1' nylon hook & loop webbing and rectangle d-ring |
Number of Entrances |
"¢ 1x 33" over ladder entrance "¢ outer 40" x 30" side-zipping rigid-roll-and-stow LST fabric door "¢ inner 33" u-zip insect mesh closure with pvc toggle and loop fasteners "¢ full entrance-width rainfly canopy secured by 2x covered no-leak blind-rivit spring poles "¢ 2x 37" black-tipped cold-rolled steel spring poles |
"¢ 1x 33" over ladder entrance "¢ outer 43" x 33" side-zipping rigid-roll-and-stow LST fabric door "¢ inner 40" x 33" u-zip insect mesh closure with pvc toggle and loop fasteners "¢ full entrance-width rainfly canopy secured by 2x covered no-leak blind-rivit spring poles "¢ 2x 37" black-tipped cold-rolled steel spring poles |
Number of Windows |
"¢ 2x 48" x 30" outer n-zip insect mesh closures with pvc toggle and loop fasteners and inner n-zip LST windows capped by 2x extendable or roll-and-stowed LST arched weather canopies, 4x 33" red-tipped cold-rolled steel spring poles seated in tent frame and locked into 3/4" stainless steel reinforced blind rivets extending the window canopies "¢ 1x 30" roof vent positioned under rainfly with an outer u-zip insect mesh closures with pvc toggle and loop fasteners and inner u-zip LST flap |
"¢ 2x 48" x 30" outer n-zip insect mesh closures with pvc toggle and loop fasteners and inner n-zip LST windows capped by 2x extendable or roll-and-stowed LST arched weather canopies, 4x 33" red-tipped cold-rolled steel spring poles seated in tent frame and locked into 3/4" stainless steel reinforced blind rivets extending the window canopies "¢ 1x 30" roof vent positioned under rainfly with an outer u-zip insect mesh closures with pvc toggle and loop fasteners and inner u-zip LST flap |
Internal Storage Dimensions |
"¢ 56" (L) x 18" (W) x 12" (H), measured from hinge side out 18" (opposite of entrance) | "¢ 72" (L) x 18" (W) x 12" (H), measured from hinge side out 18" (opposite of entrance) |
Included Accessories |
"¢ 1x portable 24" 5V USB LED aluminum clip-on pole light with built-in dimmer that mounts to any 3/4" pole internal & external paired with 2x internal hanging portable power supply pouches (power supply not included) |
"¢ 1x portable 24" 5V USB LED aluminum clip-on pole light with built-in dimmer that mounts to any 3/4" pole internal & external paired with 2x internal hanging portable power supply pouches (power supply not included) "¢ 2x removable sail-track gear bags in olive, 1x mesh-pocket style and 1x gusseted footwear style "¢ 1x adjustable interal aluminum snow/peak pole for more tension and support "¢ 2x internal storage pouch "¢ 1x tent mounting kit "¢ 1x 35" x 22" removable sail-track gear ladder-guard with 1x mesh pocket in olive |
Sleeping Capacity |
"¢ 2 adults comfortably | "¢ 3 adults comfortably |
Weight Capacity |
"¢ 440 lbs | "¢ 660 lbs |
Sleeping Footprint |
"¢ 56" (W) x 78" (L), equal to full XL mattress |
"¢ 72" (W) x 86" (L), equal to a cali-king mattress "¢ bonus 12" of head/foot room on the hinge-side corner of the hard shell "¢ mattress transitions from 72" down to 70" to accommodate hinge |
Mattress |
"¢ 2" rebound foam with removable quilted nylon topper in olive | "¢ 2" rebound foam with removable quilted nylon topper in olive |
Peak Internal Height |
"¢ 44" increased with adjustable internal snow/peak pole | "¢ 49" increased with adjustable internal snow/peak pole |
Tent Weight |
"¢ 195 lbs | "¢ 204 lbs |
Recommended Rack |
"¢ rack rated for 190 dynamic lbs | "¢ rack rated for 190 dynamic lbs |
Closed Outside Dimensions |
"¢ 49" (W) x 62" (L) x 14" (H) | "¢ 56" (W) x 78" (L) x 14" (H) |
Open Outside Dimensions |
"¢ 56" (W) x 88" (L) x 48" (H) | "¢ 78" (W) x 98" (L) x 54" (H) |
Mounting Rails (Base) |
"¢ 1" square 3 side T-slot rails "¢ 60" (L) front to back "¢ 28" on center between rails "¢ 11" from the edge |
"¢ 1" square 3 side T-slot rails "¢ 73" (L) front to back "¢ 30.5" on center between rails "¢ 12.75" from the edge |

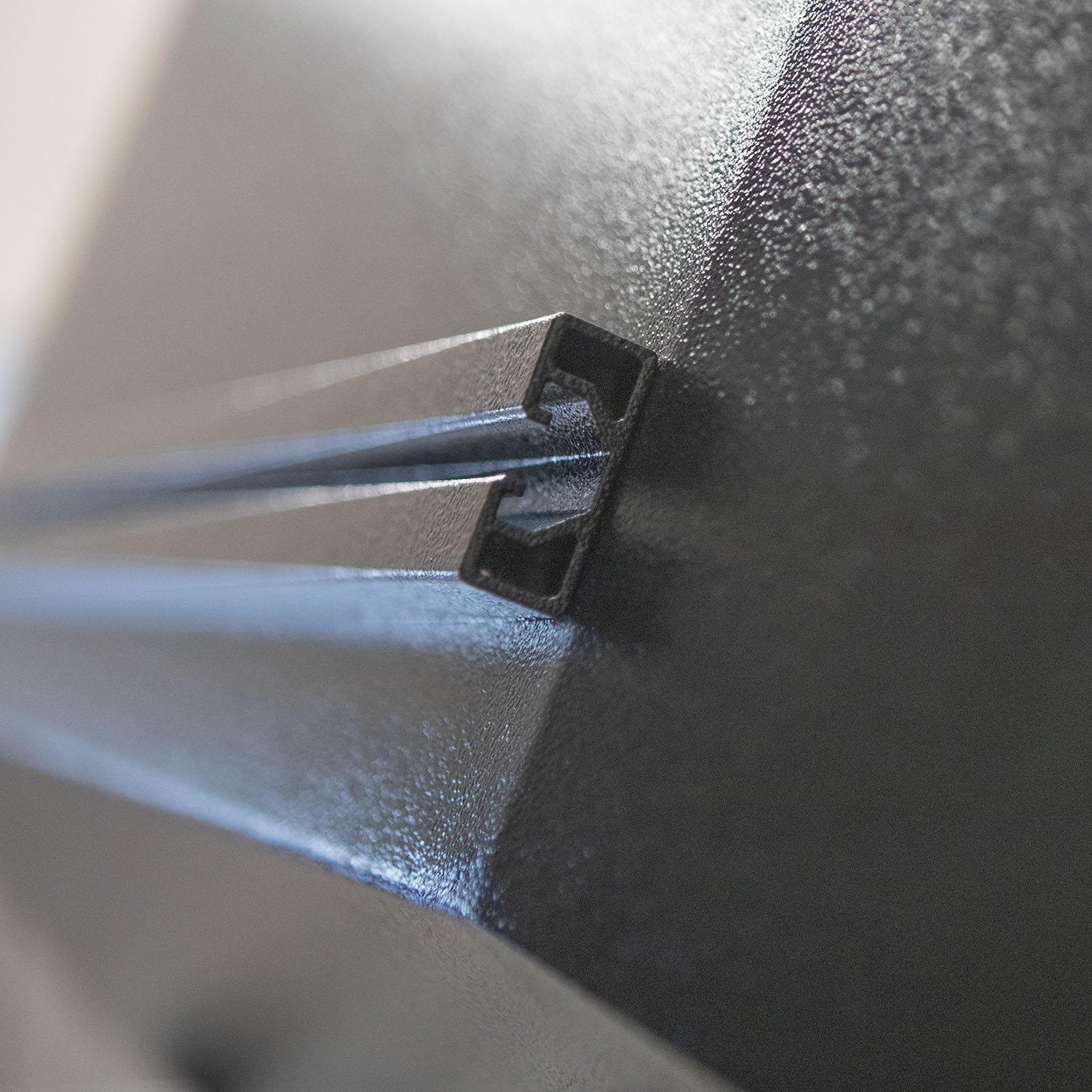

Top Accessory Mounting Rails |
"¢ T-slot, extruded aluminum "¢ 31" long "¢ 35" center to center, between rails |
"¢ T-slot, extruded aluminum "¢ 45 3/4" long "¢ 35 3/8" center to center, between rails |
Accessory Rail Weight Capacity |
"¢ 60 lbs | "¢ 60 lbs |
Mounting Kit Includes |
"¢ 6 window poles with bag "¢ 4 mounting plates "¢ 8 bolts "¢ 8 nylock nuts "¢ 13mm ratcheting & box wrench "¢ 2 guy lines "¢ 2 stakes "¢ 4 rail end-caps "¢ 1 side open handle and hardware |
"¢ 6 window poles with bag "¢ 4 mounting plates "¢ 8 bolts "¢ 8 nylock nuts "¢ 13mm ratcheting & box wrench "¢ 2 guy lines "¢ 2 stakes "¢ 4 rail end-caps "¢ 1 side open handle and hardware |
Tent Color |
"¢ olive green | "¢ olive green |
Outer Shell Color |
"¢ semi-textured high-gloss black finish | "¢ semi-textured high-gloss black finish |
Outer Shell Material |
"¢ 14 GA fully welded aluminum-hard shell | "¢ 14 GA fully welded aluminum-hard shell |
Base Tent Fabric |
"¢ 280 GSM RipStop poly-cotton canvas with LST | "¢ 280 GSM RipStop poly-cotton canvas with LST |
Rainfly Fabric |
"¢ PU polyester | "¢ PU polyester |
Ceiling Material |
"¢ green quilted nylon | "¢ green quilted nylon |
Mattress Cover |
"¢ green quilted nylon topper | "¢ green quilted nylon topper |
