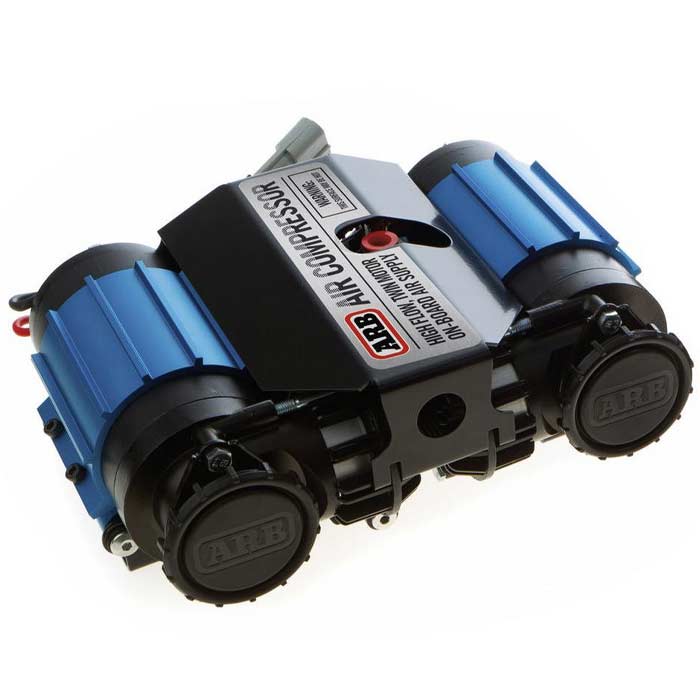

ARB High Performance Twin On-Board Compressor

This is ARB's twin on-board compressor. These kits have been designed to be compact in size, yet provide a high volume compressed air source to suit the needs of most air powered tools while controlling the needs of the ARB Air Locker.

With reliability in mind, the ARB Compressor Kits are crafted out of light weight, high strength engineering grade materials which include military and aerospace standard components. All components are sealed which promotes moisture and dust resistance when you're on extreme terrains.

Features:

• Constructed primarily of light weight, high strength, engineering grade materials, including military and aerospace standard components.

• Pressure switch controlled air manifold system regulates pressure between 9.3Bar [135PSI] and 10.3Bar [150PSI] suited to air tools and all ARB Air Locker equipped vehicles.
• Highest air flow rate of any 12V compressor of its size on the market at 174LPM [6.16CFM].
• High efficiency design consumes only 56 Amps at maximum air flow.
• Built with sealed components for moisture and dust resistance.
• Hard-anodized cylinder bores and PTFE (Teflon) impregnated carbon fiber piston seals for reduced friction and maximum trouble free life.
• Ducted IP55 sealed brushless DC cooling fan and anodized motor mounting brackets effectively dissipate heat from the motors, heads and electronics allowing for a 100% duty cycle (under room temperature conditions).
• Anti-vibration / sound deadening is integrated into the mount.
• Relocatable splash resistant air filter assemblies for cleaner, cooler air supply and versatile waterproof air intake positioning.
• High density and high flow washable sintered bronze air filter elements.
• Full wiring loom included for simplified installation and easy plug-in connectivity to Air Locker control solenoids. (Note: Air Locker Manifold Kit #171503 required to mount solenoids).
• Equipped with dual heavy duty Maxi-Fuses for professional in-line circuit protection and true circuit redundancy in case of a fault.
• Motors are water sealed, 100% ball bearing equipped (i.e., no bushings used), and feature a unique linear brush pre-load system for extra long life, low heat and quiet operation throughout the life of the unit.
• Motors are internally thermal protected against extreme temperature damage.
• Compressor pistons are equipped with a heavy duty European made cylindrical roller bearing.
• Over-pressure safety valve equipped.
• Sealed illuminated automotive grade dash switch included.
• Fully serviceable and all replacement parts available.
• EMF suppressed for use in proximity to sensitive electronic equipment.
• CE and C-Tick compliant.
• Engineered, built, and individually dyno-tested in Australia from local and imported components.
