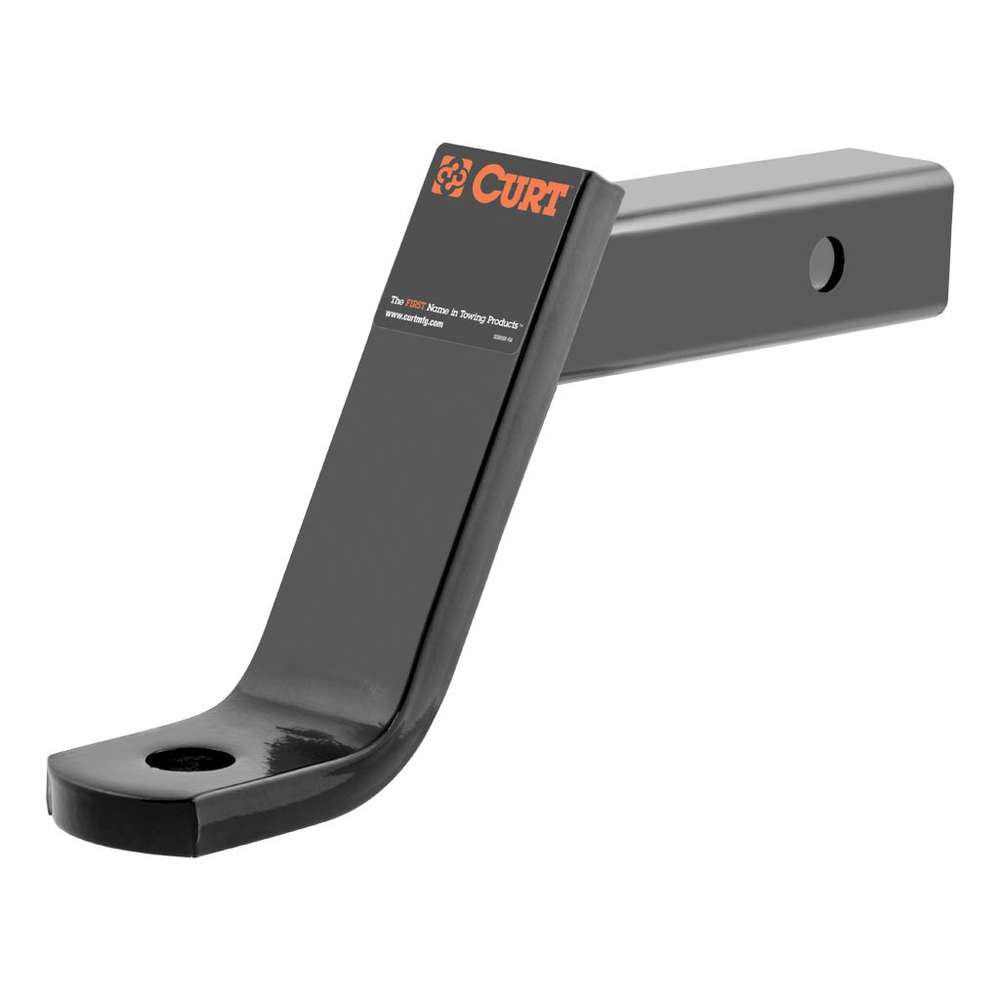

Curt Class 3 Ball Mount (2" Shank, 7,500 lbs, 6" Drop, 9 1/4" Long)

CURT class 3, or standard-duty, ball mounts are a step up from classes 1 and 2. They feature a 2" x 2" shank and have a higher weight capacity for towing heavy-duty trailers, including utility trailers, boat trailers, campers, single-horse livestock trailers and most recreational vehicle trailers. With class 3 trailer hitches being the most common type of trailer hitch for pickup trucks and SUVs, the class 3 ball mount, by association, is an excellent complement to this trailer hitch and these larger vehicles (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc).

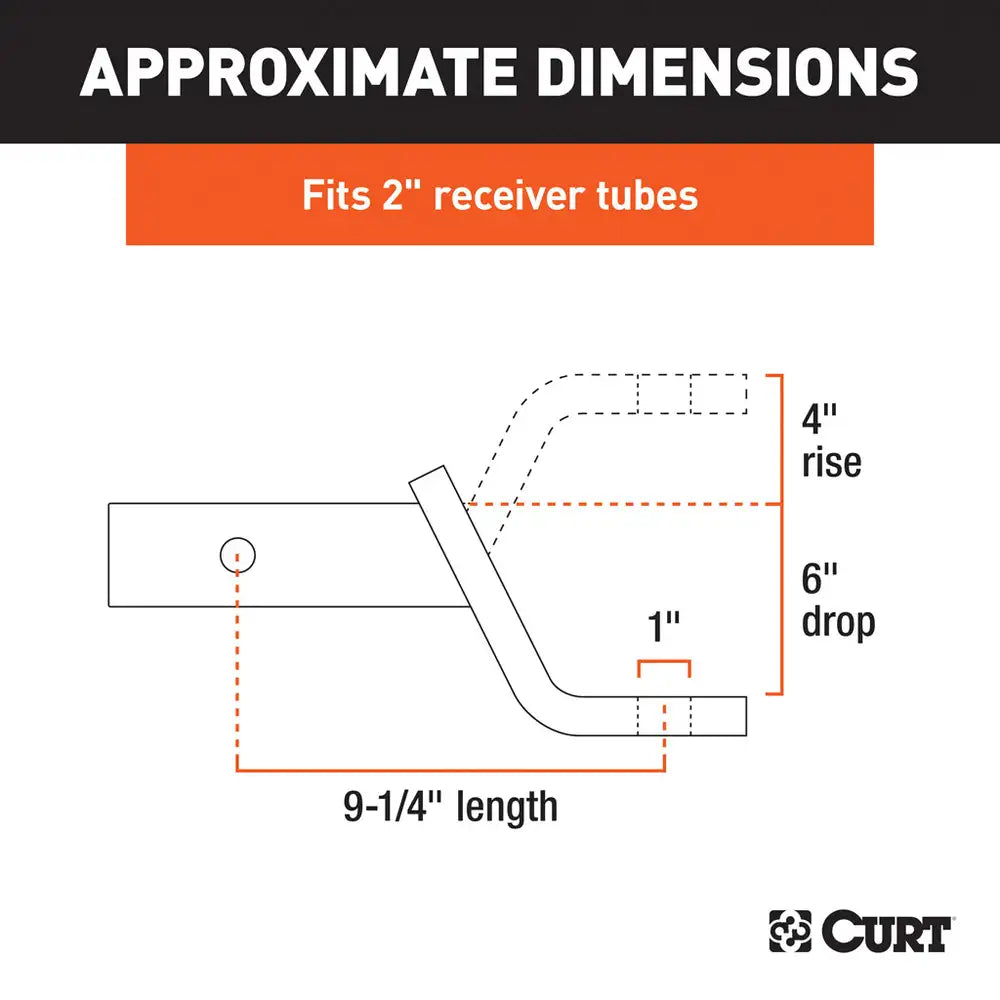

This particular class 3 ball mount can be used in the drop position to provide a drop of 6", a gross trailer weight capacity of 7,500 lbs. and a tongue weight capacity of 750 lbs. It can also be flipped to provide a rise of 4", a gross trailer weight capacity of 6,000 lbs. and a tongue weight capacity of 600 lbs. It features a length of 9-1/4". Class 3 ball mounts are CNC-formed and robotically welded to ensure unwavering precision and dependable strength in each and every unit. We mechanically descale each one to provide a smooth surface for a long-lasting finish. This class 3 ball mount comes with a durable gloss black powder coat finish to protect against corrosion, scratches, UV damage and more to give it the thick skin it needs to face the road ahead.

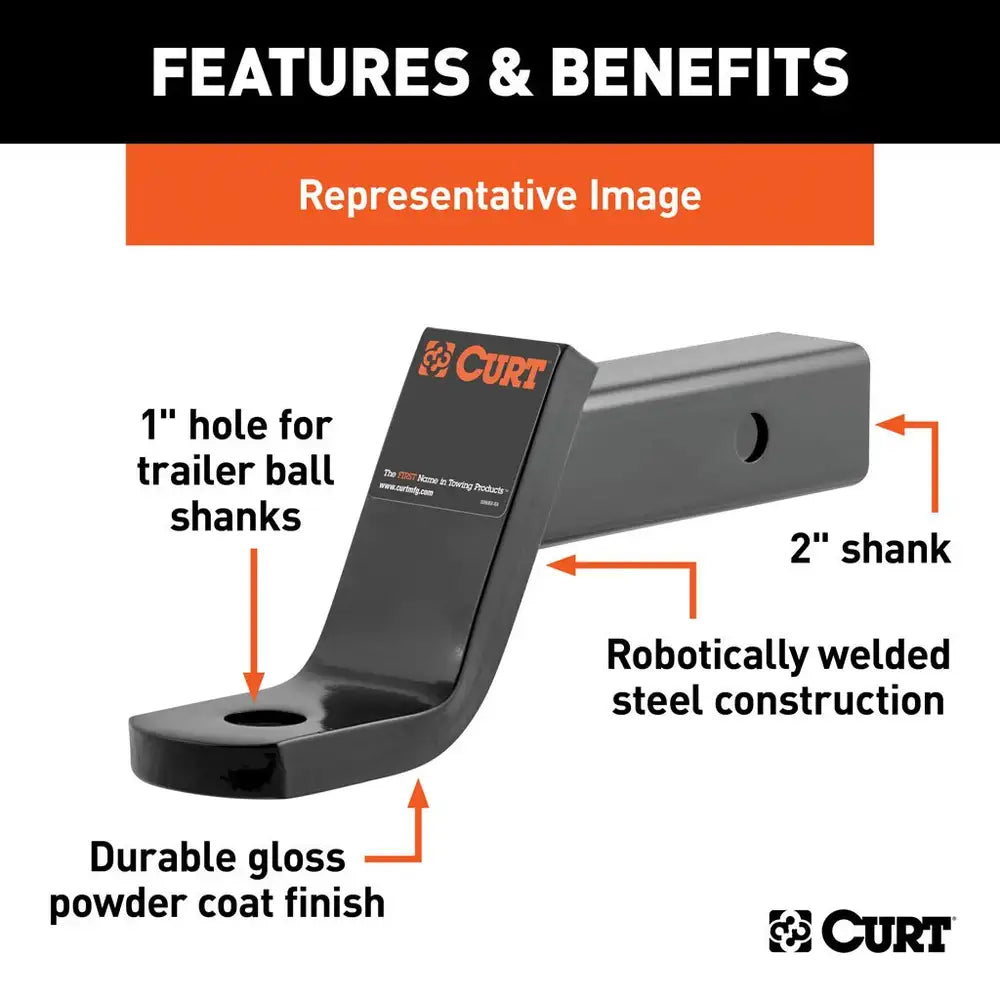

Features:

• Fits trailer hitches with a 2" x 2" receiver tube opening
• Equipped with a 1" hole to accept a trailer ball shank
• 4" rise or 6" drop for precise trailer leveling
• Hollow shank weighs less and can be used with an anti-rattle kit
• CNC-formed, robotically welded and mechanically descaled for a perfect fit
• Protected by a durable powder coat finish
• Made in USA
• Limited lifetime warranty (one-year finish, one-year parts)
• Trailer ball and hitch pin sold separately

Specs:

• Ball Hole: 1 IN
• Drop: 6 IN
• Finish: Gloss Black Powder Coat
• GTW/TW Ball Drop: 7,500 / 750 LB
• GTW/TW Ball Rise: 6,000 LB / 600 LB
• Length: 9 1/4 IN
• Material: Carbon Steel
• Part Type: Class 3 Ball Mount
• Receiver Tube Size: 2 IN
• Rise: 4 IN
• Shipping Weight: 9.000
• Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
