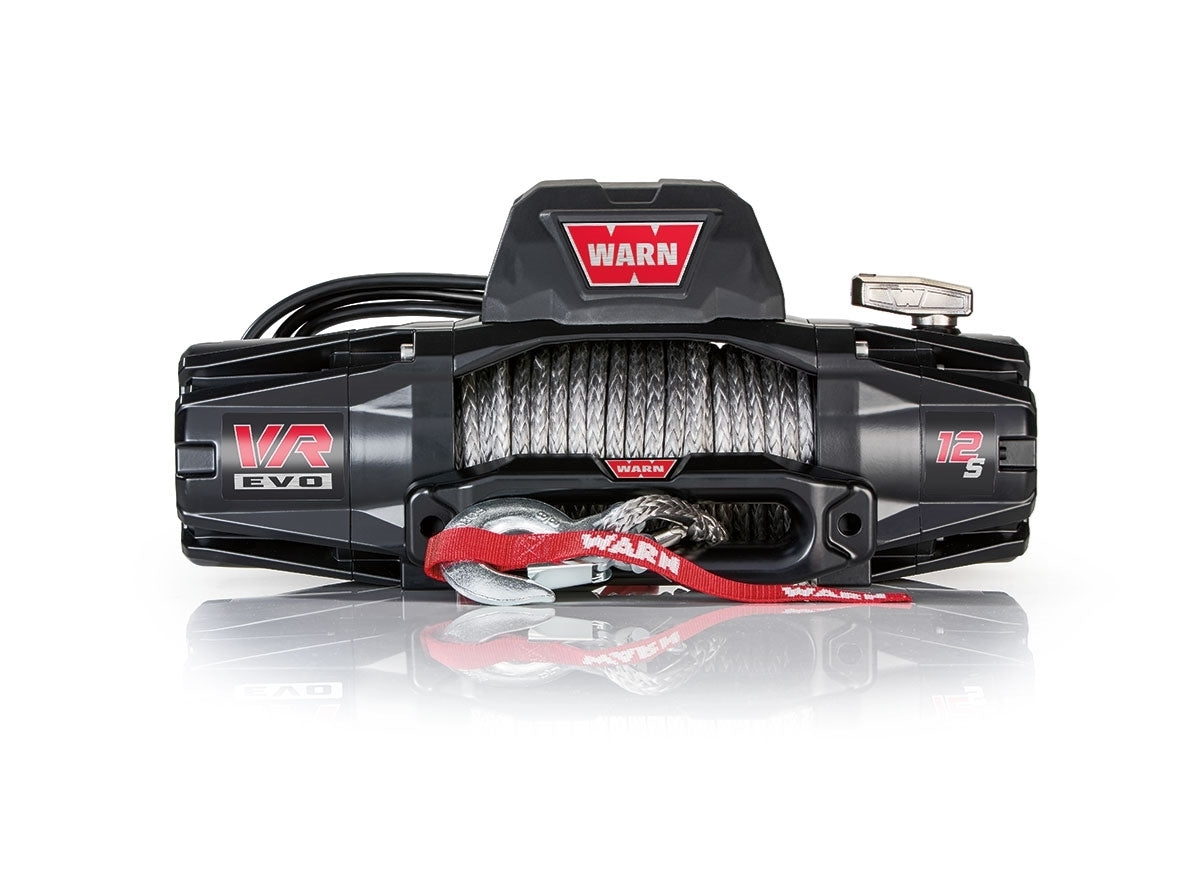

Warn VR EVO 12-S Winch

Ideal for 3/4 and 1-ton pickups and all types of large frame rigs that require longer and heavier pulls. The VR EVO 12-S features IP68-rated waterproof construction, an ultra-reliable Albright® contactor inside a relocatable control pack, and a corded remote with 11.5' (3.5m) lead. With it’s fast line-speed and lower amp draw, the VR EVO winches are the hardest-working standard-duty winches we’ve ever made, with tactical styling that looks great up front and at a price that won’t pull you out of your budget.

Features:

• A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw
• IP68-rated waterproof winch construction keeps the elements out
• High-performance Albright contactor delivers maximum reliability
• Control packs can be relocated for low-profile installations
• Durable, one-piece cast-aluminum tie-plate for added strength and durability
• Corded remote with 11.5' (3.5m) lead
• Limited lifetime warranty for mechanical parts and 7 years on the electrical

Specs:

• TYPE: Electric
• RECOMMENDED USE: Vehicle Recovery
• MOUNTING LOCATION: Vehicle Mounted
• VOLTAGE: 12 Volt DC
• ELECTRICAL CONTROL TYPE: Albright Contactor
• MOTOR TYPE: Series Wound
• DRIVE GEAR TYPE: 3-Stage Planetary
• GEAR REDUCTION RATIO: 234:1
• FREE SPOOLING: Yes
• BRAKE TYPE: Spring
• LINE DIAMETER (IN): 3/8 Inch
• LINE MATERIAL: Synthetic
• LENGTH (FT): 90
• FAIRLEAD TYPE: Hawse
• REMOTE TYPE: 2 in 1 plug in remote with wireless capability
• MOUNTING HOLE QUANTITY: 4

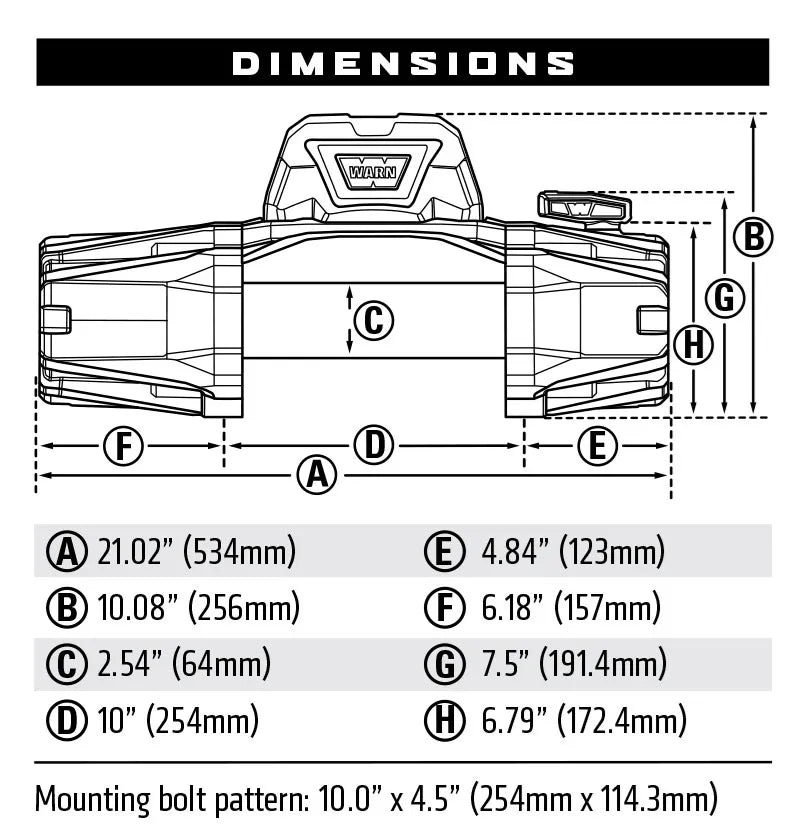

• MOUNTING PATTERN LENGTH (IN): 10 Inch
• MOUNTING PATTERN WIDTH (IN): 4-1/2 Inch
• INCLUDES MOUNTING HARDWARE: Yes
• COLOR: Black
• DRUM MATERIAL: Steel
• MAX LINE PULL/ LINE SPEED: 12,000 pounds / 4.0 feet per minute
• MAX AMP DRAW/ LINE PULL: 396 Amps / 12,000 pounds
