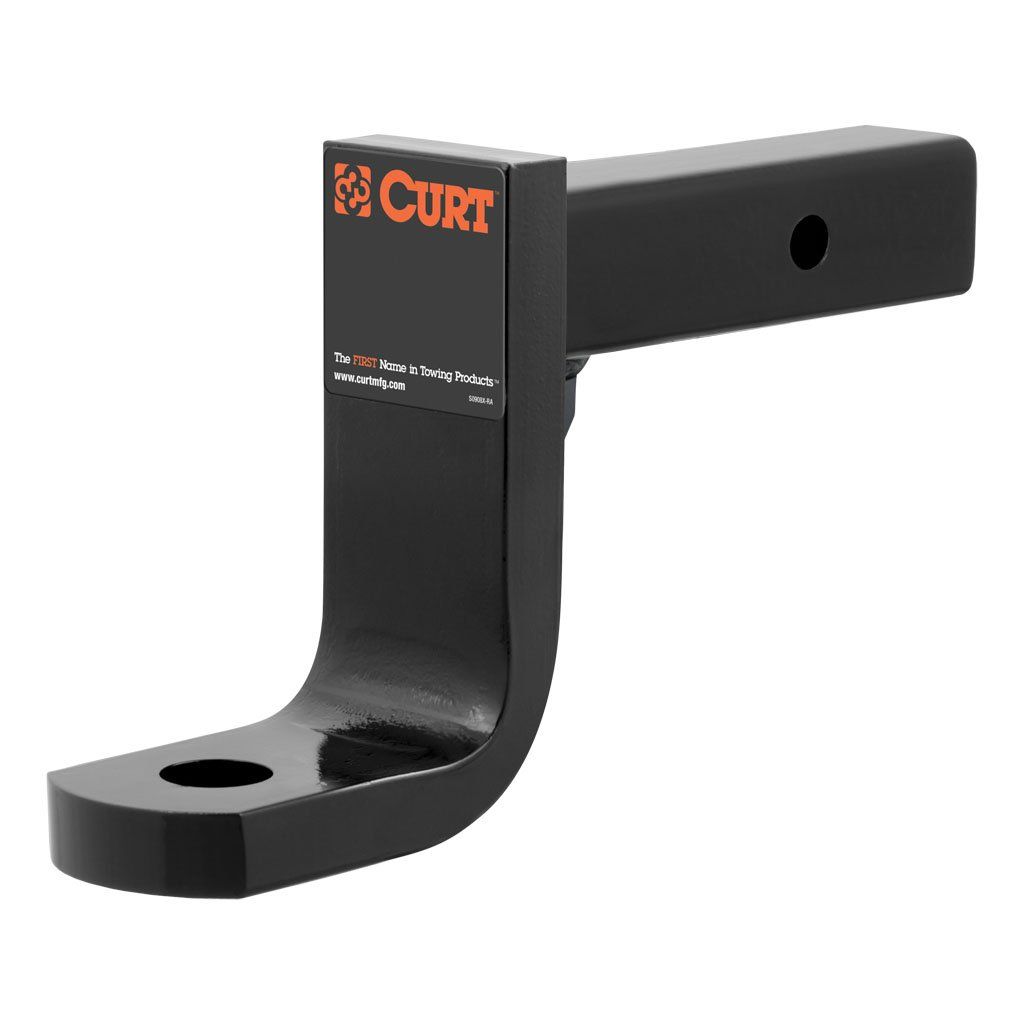

CURT Class 4 Ball Mount (2" Shank, 12,000 lbs, 6" Drop, 9-3/8" Long)

When you demand more from your towing equipment, CURT heavy-duty ball mounts answer the call. For towing those especially heavy loads and bulky trailers, you need a ball mount that knows how to handle itself when the going gets tough. Our heavy-duty ball mounts are constructed from quality steel and feature a 2" x 2" shank. They are built to complement CURT class 4 trailer hitches and are perfect for towing large boat trailers, RVs, livestock and horse trailers as well as a variety of other farm and industrial-type trailers (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). With a few different drop height options and the ability to flip for optional rise, CURT heavy-duty ball mounts are built to work as hard as you do, from sunup to sundown.

This HD ball mount has a gross trailer weight capacity of 12,000 lbs. and tongue weight rating of 1,200 lbs. It measures 9-3/8" in length, has a 6" drop and can be flipped to provide 5" of rise. As with most of our ball mount line, CURT class 4 ball mounts are CNC-formed, robotically welded and mechanically descaled to create a flawless product. We finish our heavy-duty ball mounts in a gloss black powder coat to give them superior rust, chip and UV resistance. They also come with 1-1/4" ball hole to accept a trailer ball with a 1-1/4" shank.

Features:

• Fits trailer hitches with a 2" x 2" receiver tube opening
• Equipped with a 1-1/4" hole to accept a trailer ball shank
• 5" rise or 6" drop for precise trailer leveling
• Shank constructed from solid steel for optimum strength
• CNC-formed, robotically welded and mechanically descaled for a perfect fit
• Protected by a durable powder coat finish
• Made in USA
• Limited lifetime warranty (one-year finish, one-year parts)
• Trailer ball and hitch pin sold separately

Specs:

• Part Type: Class 4 Ball Mount
• Material: Carbon Steel
• Shipping Weight: 19.000
• Warranty: Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
• HUB_USA: D01
• Tongue Weight (TW): 1,200 LB
• Gross Trailer Weight (GTW): 12,000 LB
• Drop: 6 IN
• Rise: 5 IN
• Receiver Tube Size: 2 IN
• Length: 9 3/8 IN
• Ball Hole: 1 1/4 IN
• Finish: Gloss Black Powder Coat
