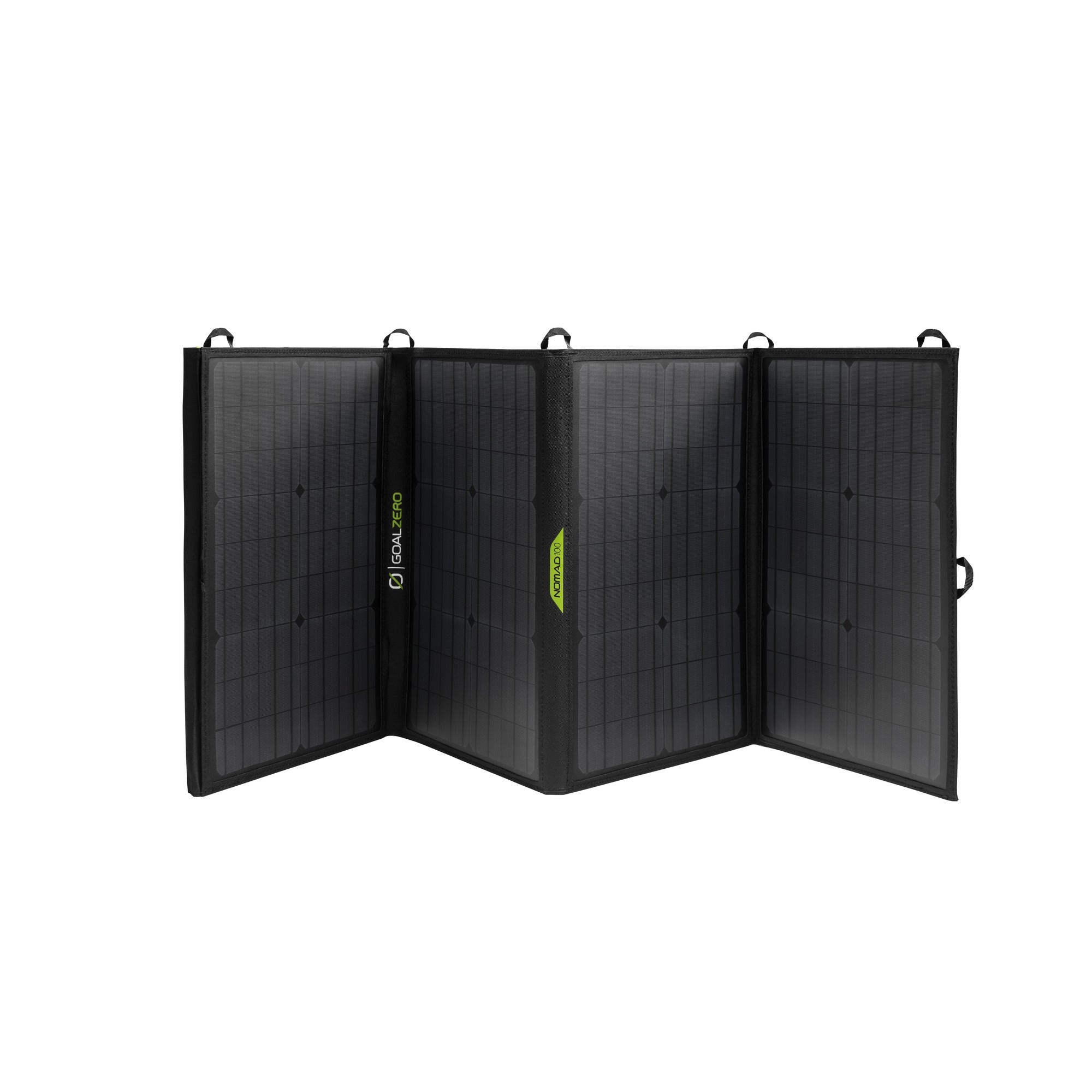

Goal Zero Nomad 100

Portable, rugged, and powerful, this 100-Watt lightweight, foldable panel features built-in charging cables for Yeti Power Stations. Combine multiple panels to maximize solar input on your next overlanding trip.

100-Watt (14-22V) foldable and weatherproof solar panel.

Big wattage and weighs only 10 lbs. For chaining multiple Nomad 100 Solar Panels together, purchase a 4X 8mm Combiner to High Power Port Connector.

The solar panel does not hold a charge it produces power when it is exposed to sunlight. Connect it to recharge a portable power station. The Nomad 100 is best used for recharging Goal Zero Yetis.

Place solar panels towards the sun at an angle.

Connect High Power Power to Yeti Power Station.

Adjust solar panel as the sun moves across the sky.

Charge times:

• Yeti 200X: 2-4 hours
• Yeti 400: 6-12 Hours
• Yeti 400 Lithium: 7-14 Hours
• Yeti 500X: 6-12 Hours
• Yeti 1000 Lithium: 16-32 Hours
• Yeti 1000X: 12-24 Hours
• Yeti 1400 Lithium: 22-44 Hours
• Yeti 1500X: 18-36 Hours
• Yeti 3000 Lithium: 36-72 Hours
• Yeti 3000X: 36-72 Hours

Ports:

• Solar Port (blue 8mm, male): 14-22V, up to 5.56A (100 max)

Solar:

• Rated Power: 100 Watts
• Open Circuit Voltage (Voc) 21.5V
• Maximum Power Point Voltage (Vmpp): 18.0V
• Maximum Power Point Current (Impp): 5.56A
• Short Circuit Current (Isc): 5.9A
• Cell Type: Monocrystalline

Specs:

• Weight: 10.2 lbs (4.6 kg)
• Dimensions (unfolded): 20.5 x 59.5 x 1 in (52 x 151.1 x 2.54 cm)
• Dimensions (folded): 20.5 x 15.5 x 2 in (52 x 39.37 x 5.08 cm)
• Cable Length: 6ft
• Warranty: 12 months
