Off Grid Trailers Spare Tire Mount

� MADE IN CANADA �

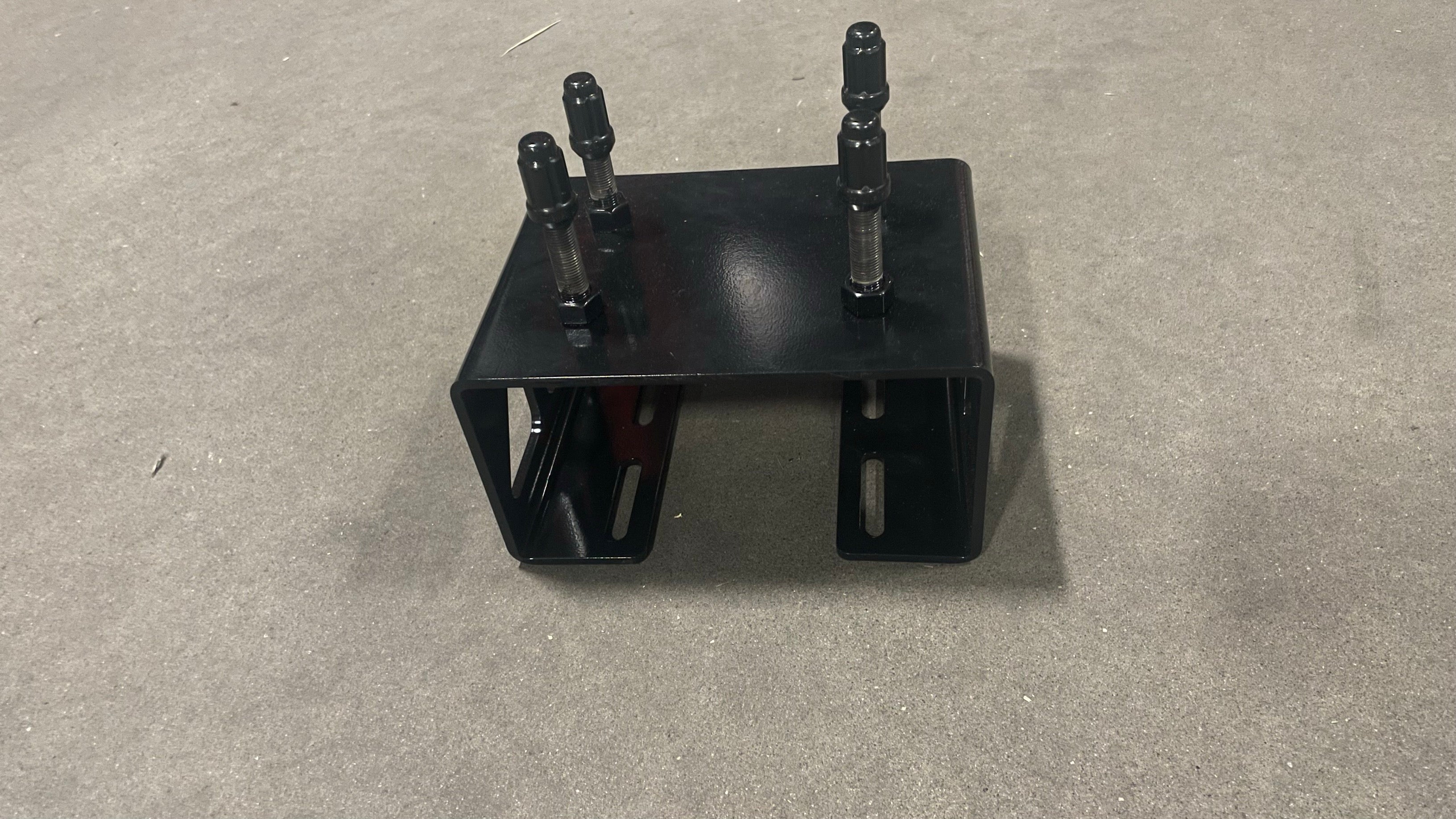

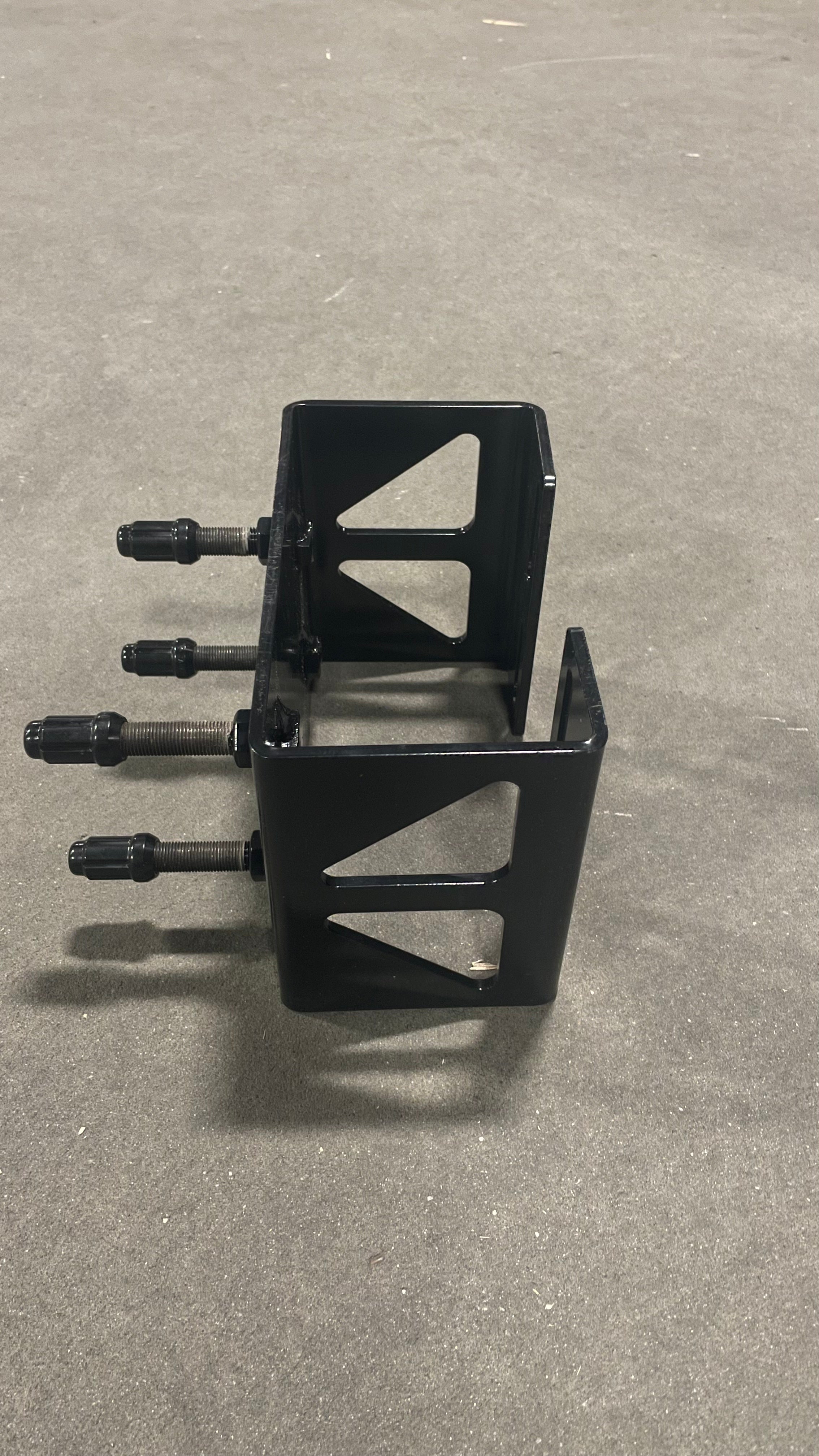

This rugged spare tire mount features a main body made from single piece of bent steel and a welded on 6X5.5 bolt pattern. Slots on the back mounting point allow for different sized wheels and tires to be used on the tire mount. You can fit up to a 35" tire. Used as an option on all your favorite Off Grid Trailers.

• Bent steel construction (welded lug bolts)
• Aluminum lug nuts
• Foam composite spacer
• Adjustable height without re-drilling
• 6x5.5 bolt pattern, up to 35-inch tire (17X8.5 wheel with a 265/70/R17 shown in picture)
• Comes with spline lug nuts, same as those on Off Grid Trailers

**DO NOT OVERTIGHTEN LUG NUTS**
We recommend a 70 ft/lbs torque rating.

Specs:

• Dimensions: 8.5 inches x 4.5 inches x 6 inches
• Lug bolt thread Depth: 1.5 inches (with lug nut on)
