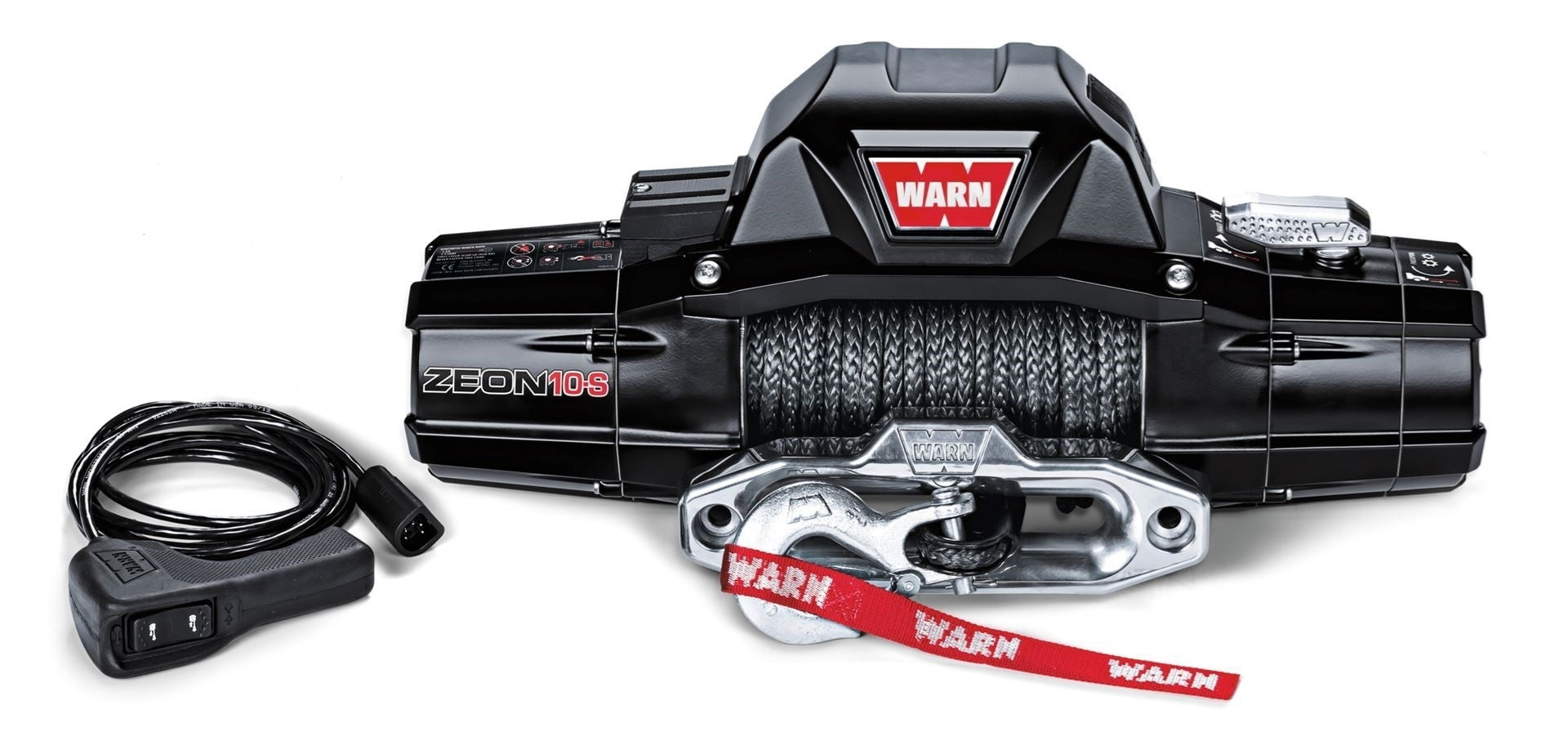

Warn Zeon 10-S Winch

The ZEON 10-S is a 12-volt electric winch, it has a pull capacity of 10,000 pounds. It comes with 100 feet of synthetic rope.

Choose your way to conquer the terrain. The ZEON 10-S is tough enough to tackle anything you will, with a look that is advanced, capable and strong. Muck-busting sealing keeps out everything but the good times. Add a hyper-durable cast-aluminum housing, satin-black finish, and 10,000 Pound single-line pulling capacity and, well, you've got a workhorse unit you can trust for years to come.

Features:

• 10,000 Pound (4536 Kilogram) Single-Line Pulling Capacity
• Includes 100 Foot Of 3/8 Inch Warn Spydura Synthetic Rope, Which Includes A Temperature-Resistant Sleeve On The First Layer, A Ballistic Nylon Sliding Sleeve And A Polished Aluminum Hawse Fairlead
• Convertible Control Pack Can Be Attached To The Winch Or Remotely Mounted, Allowing For Various Winch Mounting Options And Looks
• New-Design Planetary Gear Train And Series-Wound Motor Deliver Fast, Quiet, And Reliable Pulling Power
• Satin-Black Powder-Coated Finish With Stainless Steel Fasteners And Clutch Lever Looks Great And Inhibits Corrosion. Improved Winch Sealing To Keep The Elements Out
• Large Diameter Winch Drum Reduces Rope Wear, Is Light Weight, And Has An Integrated Rope Anchor For Easy Rope Installation
• Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

Specs:

• TYPE: Electric
• MOUNT TYPE: Vehicle Mounted
• RECOMMENDED USE: Vehicle Recovery
• VOLTAGE: 12 Volt
• ELECTRICAL CONTROL TYPE: Contactors
• MOTOR TYPE: Series Wound
• THERMAL SHUTOFF: No
• DRIVE GEAR TYPE: Planetary
• GEAR REDUCTION RATIO: 216:1
• FREE SPOOLING: Yes
• BRAKE TYPE: Mechanical Cone
• LINE DIAMETER (IN): 3/8 Inch
• LINE LENGTH (FT): 100 Feet
• LINE MATERIAL: Synthetic
• FAIRLEAD TYPE: Hawse
• CONFORMS TO J706 STANDARDS: No
• REMOTE TYPE: Handheld Remote Switch
• MOUNTING HOLE QUANTITY: 4
• OPERATION TYPE: Automatic
• MOUNTING PATTERN LENGTH (IN): 10 Inch
• MOUNTING PATTERN WIDTH (IN): 4-1/2 Inch
• INCLUDES MOUNTING HARDWARE: Yes
• COLOR: Black
• MAX AMP DRAW/ LINE PULL: 409 Amp Draw/ 10000 Pound
• MAX LINE PULL/ LINE SPEED: 10000 Pound/ 4.8 Feet Per Minute
